Vertex List¶

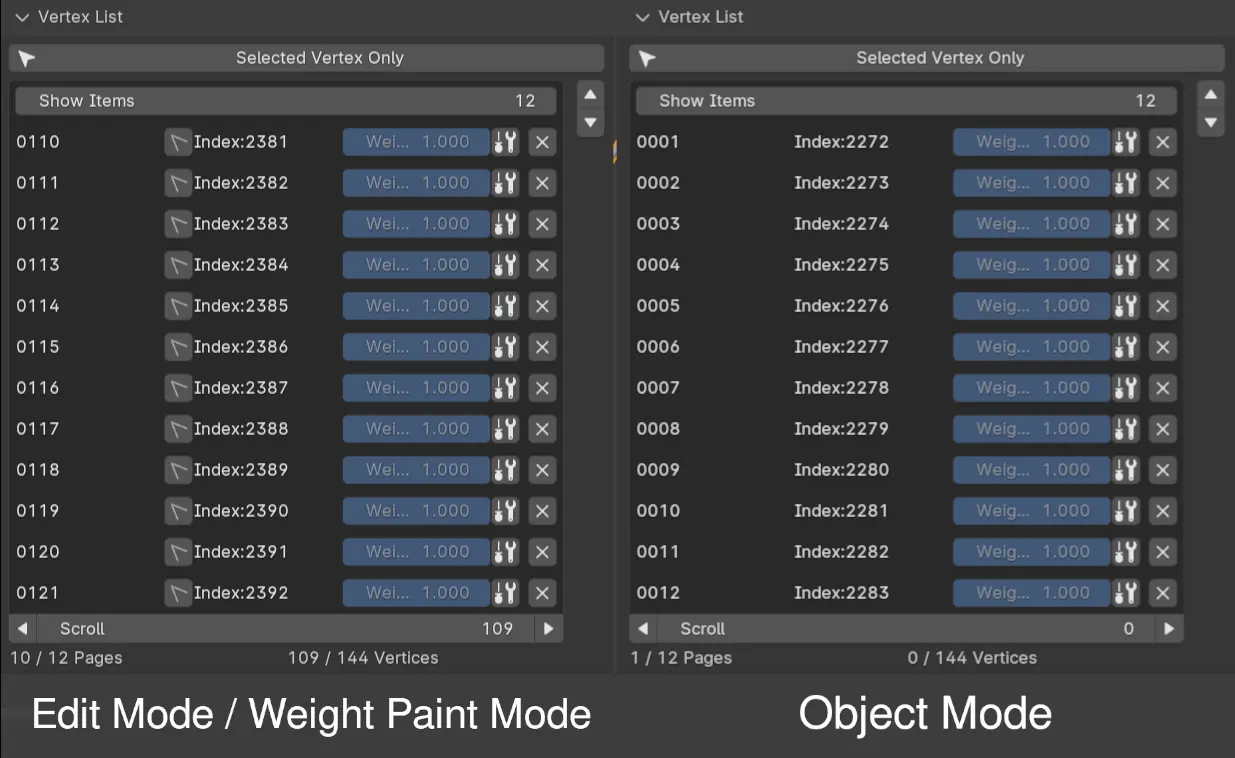

Vertex List is a list that displays all vertices in the active vertex group.
With this list, you can inspect all vertices in the vertex group in list form, allowing you to adjust the weight, select and delete vertices with ease.
Selected Vertex Only¶

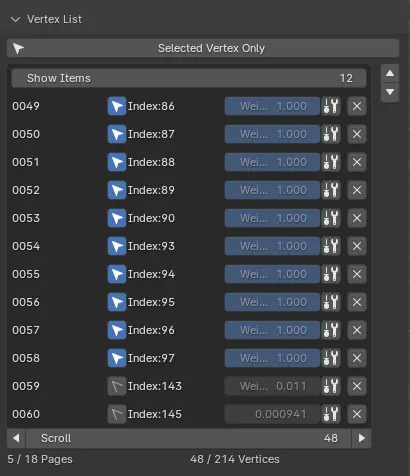

Show only the vertices that you have selected.
Show Items¶
Displays the amount of vertices in the list at a given time.
Scroll¶
Enables you to scroll through the vertices.
Scoll Up / Down / Page Arrows¶
The up and down arrow at the side will scroll by a determined increment, you can change the increment amount by holding down “ctrl + click” on the button.
The left and right arrow enables you to scroll through the pages, which is determined by the Show Items operator above.
These operators will also be affected by certain modifiers.
Modifier¶
Click: Scroll by increment set (Default: 1).
Shift: Scroll one page up (determined by Show Items).
Alt: Scroll to top / bottom.
Ctrl: Set the scroll increment.
List Items¶
The item in the list are as follows:
Number / Count¶
This shows the count numbers of the item, it is for you to know how much you have scrolled.
Select Vertex (Edit Mode & Weight Paint Mode)¶
Selection state of the vertex.
Index¶
The index of the vertex.
Weight¶
This shows the current weight of the vertex only, it cannot be used to directly edit the weight.
Set Vertex Weight¶
Click this to adjust the weight of the vertex.
Remove Vertex¶
Clicking the “X” icon removes the vertex from the vertex group.
Note
Note that this is a very heavy item to show, so please avoid opening this subpanel if you have a very DENSE mesh.
If the vertex count of your mesh exceeds the threshold set in preferences, warning will appear.
