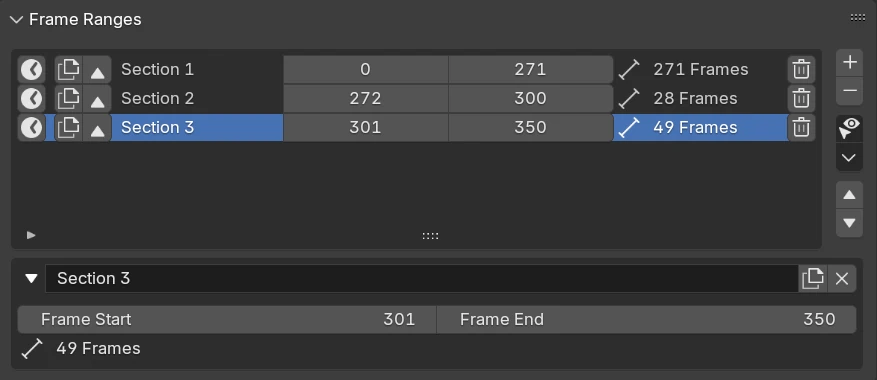

Frame Range List¶
Frame Range List displays a list of frame ranges that you can use to switch back and forth to later.
This is useful when you want to work on a few sections of your animation and allows you to work on your animation chunk by chunk without manually fiddling with frame range.
When you click the frame range, it will automatically set the frame range of the scene.
Frame Range List Items¶

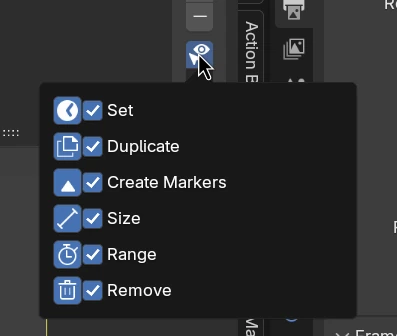

Toggle Menu¶
You can toggle which list of items to show in this menu.
Set Frame Range¶
Set the current scene’s frame range to this frame range item.
This button is not exactly needed, as you can click the frame range item directly, but it is there to make it look nicer.
Duplicate Frame Range¶
Duplicates the frrame range item.

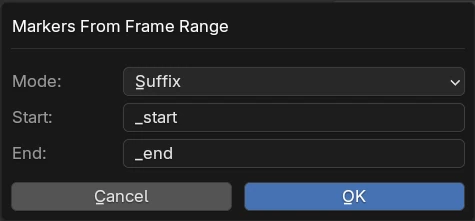

Markers From Frame Range (Single)¶
Create two markers at the start and end of the frame.
Options¶
Mode¶
Pair - Created markers will be as it is.
Suffix - Create markers and append suffix string to the end of its name to identify the start and end marker.
Prefix - Create markers and prepend prefix string to the start of its name to identify the start and end marker.
Start¶
Prefix / Suffix string to append / prepend to create markers for the frame’s start marker.
End¶
Prefix / Suffix string to append / prepend to create markers for the frame’s end marker.
Size¶
The frame count / duration / size of the frame range.
Remove¶
Removes the frame range item.
Frame Range Properties¶
Frame Range Name¶
Name of the frame range.
Duplicate Frame Range¶
Duplicate the frame range item.
Remove Frame Range¶
Removes the active frame range item from the list.
Start & End Frame¶
The start and end frame of the frame range.
Frame Range Size¶
Calculate and display the frame range’s frame counts / duration / size.
